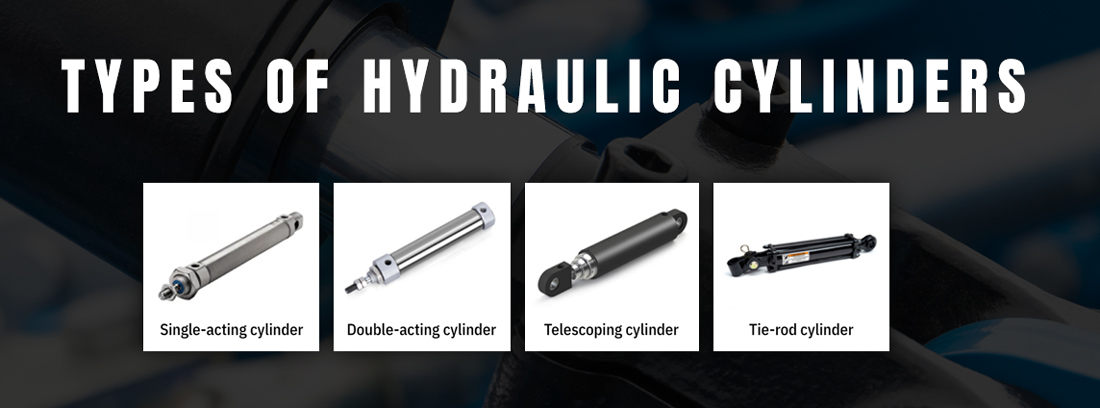

Hydraulic cylinders are vital components in many industrial machines, vehicles, and construction equipment, powering movement and providing immense force. Whether you’re involved in maintenance, replacement, or purchasing decisions, understanding how to accurately measure a hydraulic cylinder is crucial to ensure proper fitment and operation.
This guide will walk you through the essential steps of measuring a hydraulic cylinder, covering the most critical dimensions and components.

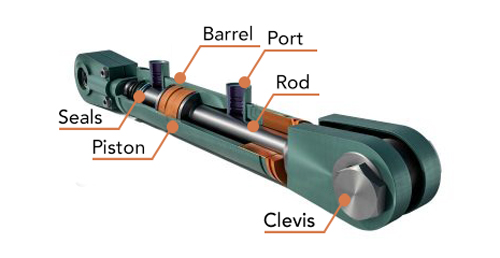

Understanding Hydraulic Cylinder Components
Before diving into the measurement process, it’s essential to familiarize yourself with the key parts of a hydraulic cylinder:
Cylinder Bore
The internal diameter of the cylinder barrel.
Rod Diameter
The diameter of the rod that extends out of the cylinder.
Stroke Length
The distance the rod travels when the cylinder is fully extended.
Pin-to-Pin Length
The overall length from the center of one pin to the other, which is typically the mounting length.
Mounting Type
The way the cylinder is mounted to the machine, such as clevis or trunnion.
Ports
The points where hydraulic fluid enters and exits the cylinder.
Now, let’s dive into how to accurately measure each of these components.
Step-by-Step Guide to Measuring a Hydraulic Cylinder
Measuring the Bore Diameter
The bore diameter is the internal diameter of the cylinder’s barrel. It is a critical measurement because it directly influences the amount of force the cylinder can exert.
To measure the bore:
If the cylinder is disassembled, use a caliper to measure the internal diameter of the cylinder.
If the cylinder is assembled, you will need to reference the manufacturer’s specifications or use an outside diameter measurement and estimate based on typical wall thickness.
For a quick estimate, measure the outside diameter of the barrel and subtract the wall thickness (usually about 0.25 to 0.5 inches on each side).
Example: If the outside diameter of the barrel is 4 inches and you assume a wall thickness of 0.5 inches, the bore diameter would be around 3 inches (4 – (0.5 x 2)).
Measuring the Rod Diameter
The rod diameter is another critical measurement as it affects the cylinder’s strength and the speed of extension and retraction.
To measure the rod diameter:
Use a caliper or a micrometer to measure across the rod’s width at its thickest point.
Ensure that you measure in multiple places to account for any wear and get the most accurate measurement.
Tip: The rod diameter is often a standard size, but small variations can occur depending on wear and manufacturing tolerances.
Measuring the Stroke Length
The stroke length is the distance the rod travels from fully retracted to fully extended. This is essential for determining the cylinder’s range of motion.
To measure the stroke length:
Fully extend the cylinder.
Measure from the base of the cylinder to the end of the rod (excluding the piston).
If the cylinder cannot be fully extended, measure the visible portion of the rod and add the remaining portion inside the cylinder (this may require some estimation or referencing manufacturer specs).
Important: For accurate results, always ensure the cylinder is fully extended when measuring stroke length.
Measuring the Pin-to-Pin Length
The pin-to-pin length is the distance from the center of one mounting pin to the center of the other when the cylinder is fully retracted. This is crucial for ensuring that the cylinder fits properly within the equipment.
To measure the pin-to-pin length:
Fully retract the cylinder.
Measure from the center of the pin at one end of the cylinder to the center of the pin at the opposite end.
Tip: If the pins are removable, ensure they are inserted before measuring to avoid any miscalculations.

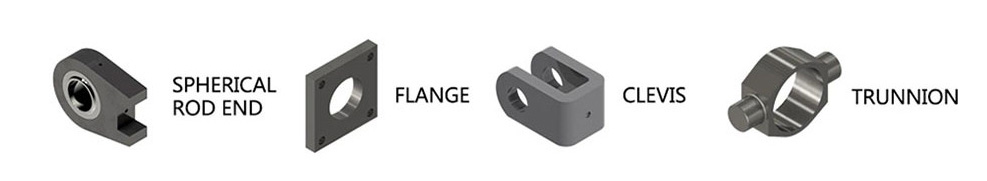

Mounting Type and Style
The mounting type affects how the cylinder is installed in the machine. Common mounting types include clevis, trunnion, flange, and eye mount.
Clevis Mount
A U-shaped bracket that allows the cylinder to pivot.
Trunnion Mount
Cylinders with trunnion pins that allow for pivoting along an axis.
Flange Mount
Cylinders that mount using flanges at either the head or cap end.
Spherical rod end mount
Type of hydraulic cylinder equipped with spherical rod ends at one or both mounting points.
To accurately measure the mounting points:
Identify the type of mounting used (clevis, trunnion, etc.).
Measure the internal and external dimensions of the mounting points, including pinhole diameters.
Measuring the Port Size and Location
Hydraulic cylinders typically have two ports: one for fluid to enter and another for fluid to exit. Proper measurement and identification of the port size and location are essential for ensuring compatibility with the hydraulic system.
To measure the port size:
Use a caliper or ruler to measure the diameter of the port opening.
Measure the distance from the port to a fixed reference point, such as the base of the cylinder or the end of the rod, to ensure proper placement.
Port location is important, especially if the cylinder is a replacement part. The wrong port size or position can cause significant installation problems or impact cylinder performance.
Other Important Measurements
Cylinder Length (Closed)
This is the overall length of the cylinder when fully retracted, including the rod and any end attachments.
Rod End Threads
If the rod end is threaded for attachments, measure the thread size and pitch to ensure compatibility with the required fittings.
Cushion Length
Some cylinders are designed with cushioning mechanisms to reduce impact at the end of the stroke. Measure the length of the cushion if applicable.
Special Considerations for Hydraulic Cylinder Measurement
Worn Components
Hydraulic cylinders experience wear over time, which can affect measurements. If you are measuring a cylinder for replacement, it is essential to account for potential wear and tear, especially on components like the rod or pinholes.
Metric vs. Imperial Measurements
Hydraulic cylinders are manufactured in both metric and imperial units, depending on the country of origin and application. Be sure to measure in the correct unit system to avoid compatibility issues. If you’re replacing a cylinder, check whether your equipment uses metric or imperial measurements before ordering.
Consult Manufacturer Specifications
Whenever possible, reference the original manufacturer’s specifications for your hydraulic cylinder. These documents will provide precise measurements, including tolerances that may not be easily measurable in the field. If you don’t have access to these, contacting the manufacturer or distributor can save time and prevent errors.
Did You Know?
For more than forty years Mechanical Power has been supplying high-quality hydraulic cylinders at competitive prices from around the world.
Maximize efficiency of your equipment.
Conclusion
Measuring a hydraulic cylinder accurately is a vital step in maintaining machinery, ensuring proper fit, and ordering replacement parts. By following this step-by-step guide, you’ll be able to gather all the necessary dimensions, including bore diameter, rod diameter, stroke length, pin-to-pin length, mounting type, and port size.
Always ensure that you take your measurements carefully and consult manufacturer specifications whenever possible to guarantee precision.
